Grade | FRX-A101 |

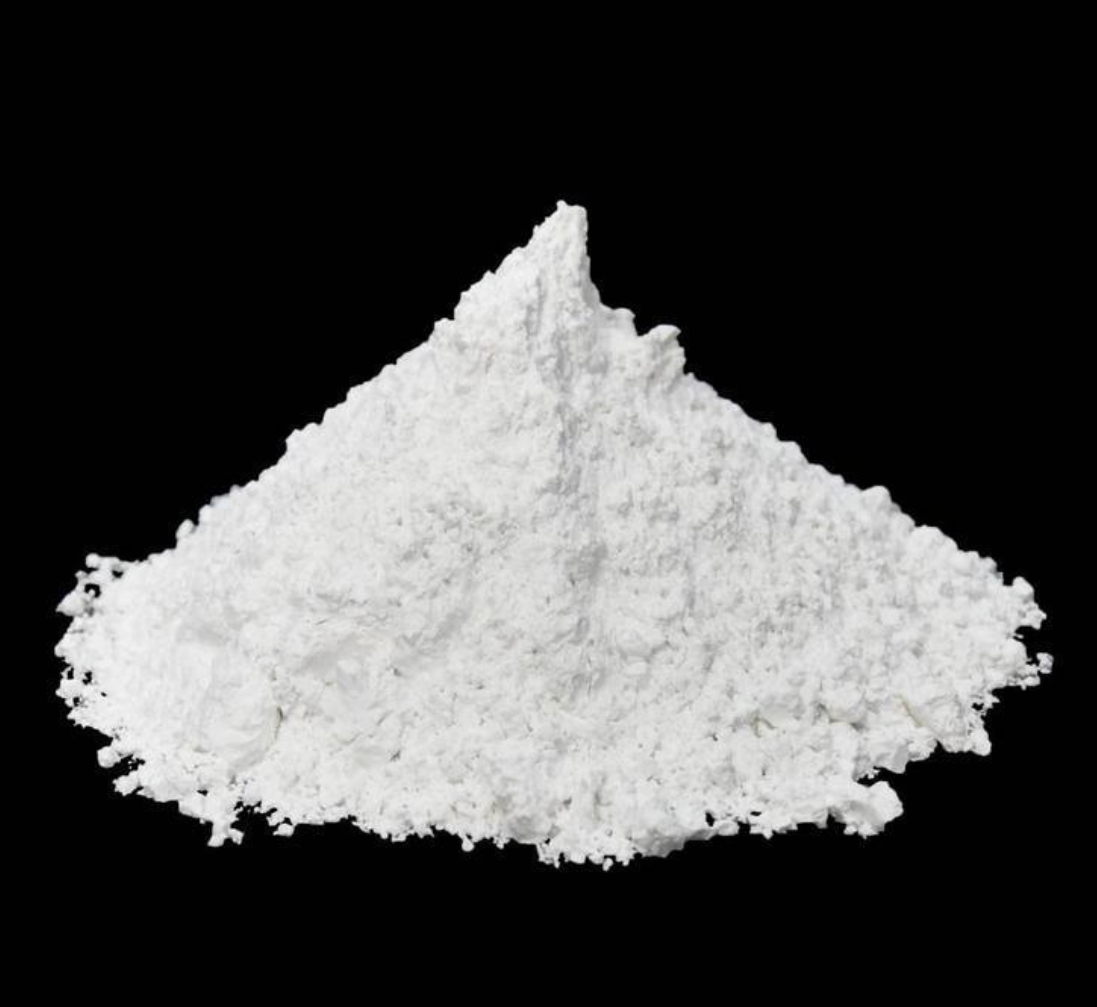

Appearance | White Powder |
Phosphorus Content (w/%) | ≥20.0 |
Moisture (w/%) | ≤0.5 |
Particle Size D50 (μm) | 35-50 |
Density (g/cm) | 0.5-0.8 |
Excellent heat resistance, low addition, excellent mechanical properties, good color and luster, low combustion smoke density of the product, and high CTI (comparative tracing index).
Can provide excellent flame resistance as well as outstanding electrical, mechanical,and heat resistance performance when used alone.
It is suitable for glass fiber reinforced nylon systems (PA6,PA66,PPA, etc.), epoxy resins, TPE, and other systems.
Materials | 1# | 2# | 3# |
PA66 |
46 |
54 |
51 |
PA6 | 10 | 10 | 10 |
Short Glass Fiber | 25 | 25 | 25 |
FRX-A101 | 0 | 10 | 12 |
Low Migration ADP | 18 | 0 | 0 |
Lubricant / Antioxidant | 1 | 1 | 1 |
Test Item | Test Standard | Unit | Result | ||
Tensile Strength | GB/T 1040-06 | Mpa |
140 |
151 | 145 |
Deflection | GB/T 9341-08 | mm | 6.6 | 8.5 | 7.6 |
Notch Impact Strength |
GB/T 1043-1-08 | kJ/m2 | 8.0 | 10.8 | 9.0 |
Flame Resistance | UL94 |
0.8mm |
V-0 |
/ |
V-0 |
1.6 mm | V-0 | V-0 | V-0 | ||
GWIT | / | ℃/2mm | 775 | 775 | 775 |
Comply with the requirements of RoHS and REACH restriction.
1. Compound paper plastic bag lined with PE film: 20kg/bag.
2. It needs to be sealed and moisture-proof, and recommended to be stored in a dry place.
3. Storage and transportation temperature: <90℃.
4. The minimum shelf life: 24 months.
