FR-FS12: Flame Retardant for ABS, PBT, PET and PA (replace Sb2O3)

Online Inquiry
Click Refresh Verification Code

Product Details

Flame Retardant FR-FS12 -- Substitution of Antimony Trioxide
Technical Data

Grade FR-FS12

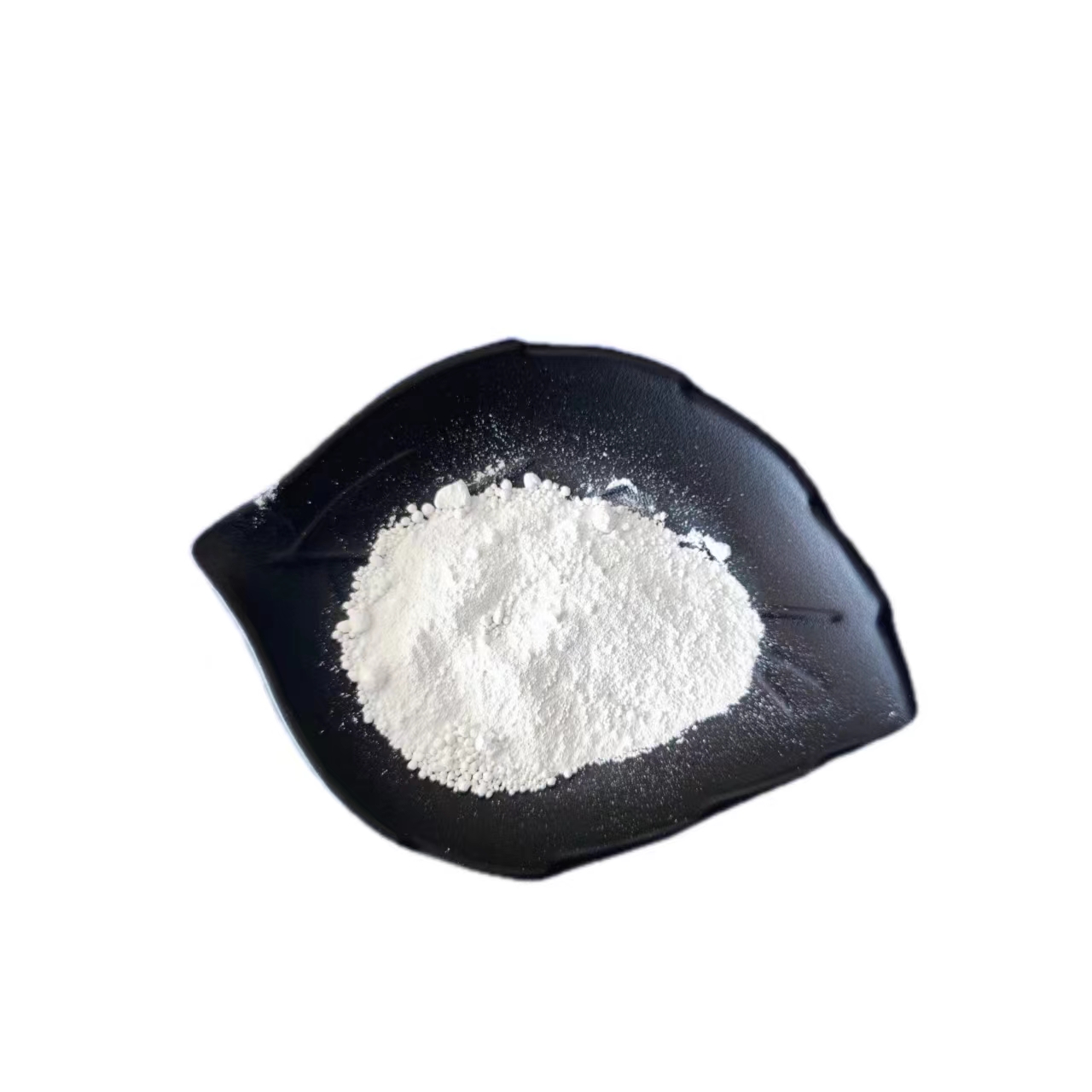

Appearance White Powder
Whiteness (%) ≥92.0
Moisture (w/%) ≤1.0
Particle Size D50 (μm) ≤5.0
Performance Features

FR-FS12 is a new and high-performance inorganic powder flame retardant synergist. Utilizing advanced nanotechnology, FR-FS12 has been treated with a surface coating to improve its compatibility with resins. When combined with brominated flame retardants, it achieves excellent effects. With an addition of 1.0~ 1.1 phr, it can replace 1 phr of antimony trioxide in modified plastics such as ABS, PBT, PET and PA products, polyester and styrene polymers, achieving the same flame resistance effect as antimony trioxide without affecting mechanical properties and electrical properties.



Comparison Test

Materials 1# 2#
ABS

77.4

77.4
Brominated Triazine 14 14
Sb2O3 3 0
FR-FS12 0 3
Antioxidant 168 0.2 0.2
Antioxidant 1010 0.2 0.2
Anti-dripping Agent 0.2 0.2
High Rubber Powder 5 5
Total 100 100


Test Item Standard Unit 1#(Sb2O3) 2#(FR-FS12)
Tensile Strength GB/T 1040-06 Mpa 41.92 41.62
Flexural Modulus GB/T 9341-08 Mpa 2329 2378
Notch Impact Strength GB/T 1043-1-08 KJ/m2 18.56 18.35
Flame Retardant Performance UL94 1.6mm V0 V0
T1+T2 S 23.5 24.1
Safety

Comply with the requirements of RoHS and REACH restriction.

Packaging and Storing

1. Compound paper plastic bag lined with PE film: 25kg/bag.

2. It needs to be sealed and moisture-proof, and recommended to be stored in a dry place.

3. Storage and transportation temperature: <90℃.

4. The minimum shelf life: 24 months.
